M VESA Flexarm Tilt & Turn II

Multibrackets M VESA Flexarm Tilt & Turn II - Wall mount for LCD / plasma panel - black - screen size: 26" - 42"

M VESA Flexarm Tilt & Turn II ends an era of bulky and heavy arms needed to flex, tilt and turn.

The uniquely designed low profile M VESA Flexarm Tilt & Turn III mount fits most 26" and up to 42" flat panels up to 25 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Flexarm Tilt & Turn III is part of the Tilt & Turn Series of fixed, tilt and cantilever mounts offering a unique design without compromising on functionality. Moreover, this wallmount has an extended profile of 225 mm from the wall.

The specifications this product reveals are simply incredible.

Super Slim defines the minimal 47 mm of the low profile to wall. It extends to a maximum of 225 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 25 kgs.

M VESA Flexarm Tilt & Turn III is suitable for a wide range of screens sized 26" and up to 42". The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm.

  • The flexarms nest for a super slim 47 mm mounting profile
  • Flex, tilt and turn for an optimal viewing angle at any time
  • Tilt easily to 0~15º to reduce glare

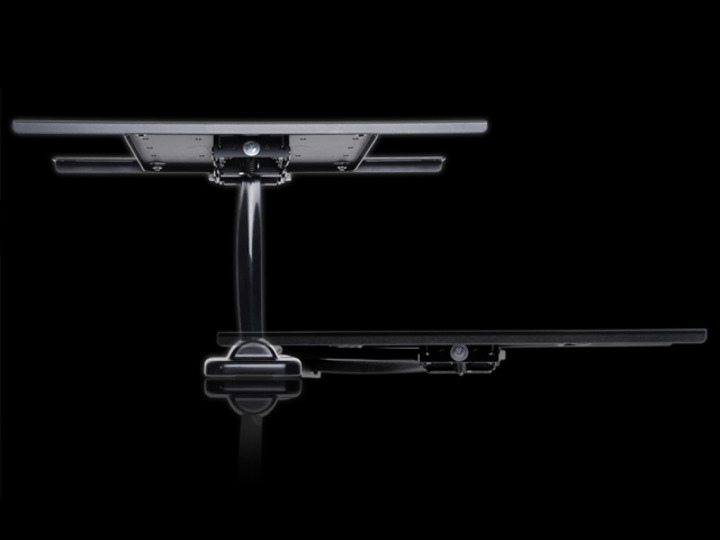

  • Turn effortlessly to -45~+45 depending on screen size to view from the right angle
  • Installation template and tool kit included for simple mounting
  • Built in bubble level for accurate mounting
  • One person tilt adjustment

    Horizonal distance in mm
    Vertical distance in mm
    VESA
    50
    75
    100
    200
    300
    400
    600
    50
    75
    100
    Yes
    Yes
    200
    Yes
    Yes
    Yes
    Yes
    300
    Yes
    Yes
    Yes
    400
    Yes
    Yes
    Yes
    600








Specification
M VESA Flexarm Tilt & Turn II
For screen size:26-42"
Universal & VESA standard:100x100 200x100 200x200 300x300 300x200 400x200 400x400
Article No:7 350 022 734 210
Size in mm:488x273x47 (W*H*D)
Weight:3,6 kg
Colour:Black
Max load:25 kg
Distribution package:4 pcs
Warranty:5 years
Cable tie:Included
Security lock:Optional
Single box size (WxDxH):550x78x340mm
Units on a EUR-pallet:80 pcs


Suitable for: LCD
Screensize: 26-42"
