M VESA Super Slim Tilt & Turn Plus

Multibrackets M VESA Super Slim Tilt & Turn Plus - Wall mount for LCD / plasma panel - black - screen size: 26" - 55"

M VESA Super Slim Tilt & Turn Plus ends an era of bulky and heavy arms needed to flex, tilt and turn. If your aim is to find a discreet partner for that new LED, LCD or plasma in a light weight, super strong solution not visible from any side yet giving you a maximum flexibility then the M VESA Super Slim Tilt & Turn Plus is your choice.

The uniquely designed low profile M VESA Super Slim Tilt & Turn Plus mount fits most 26" and up to 55" flat panels up to 40 kgs. It is very well-suited for those applications where seamless integration counts the most. The M VESA Super Slim Tilt & TurnPlus is part of the Super Slim Series of fixed, tilt and cantilever mounts offering a slim design without compromising on functionality. Moreover, this wallmount has an extended profile of 439 mm from the wall.

The specifications this product reveals are simply incredible.

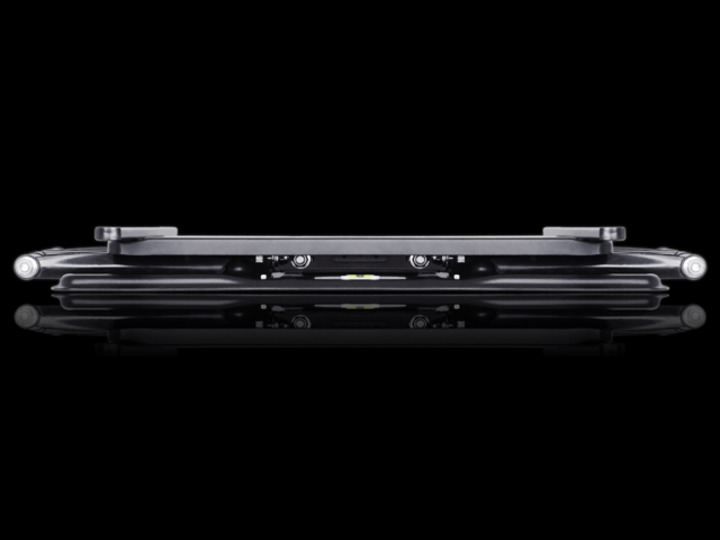

Super Slim defines the minimal 39 mm of the low profile to wall. It extends to a maximum of 439 mm proving that this construction is truly flexible being so lightweight. Yet still, produced with high quality materials creating a super strong solution carrying screen up to 40 kgs.
Being both super slim and super flexible the built in functions of the wall mount allows you to optimize the screen for the perfect viewing angle. Wherever you are.

M VESA Super Slim Tilt & Turn Plus is suitable for a wide range of screens sized 26" and up to 55". The VESA standards that are supported by this mount is 100 / 200 / 300 and up to 400 mm. If needed, the wall mount can be combined with an optional VESA extender kit which enables the 600x400 mm VESA standard. This means that M VESA Super Slim Tilt & Turn Plus is suitable for most of the VESA standards including the rare ones.

  • The flexarms nest for a super slim 38 mm mounting profile
  • Flex, tilt and turn for an optimal viewing angle at any time
  • Tilt easily to -0~+7º to reduce glare
  • Turn effortlessly to -45~+45 depending on screen size to view from the right angle
  • Installation template and tool kit included for simple mounting
  • Built in bubble level for accurate mounting
  • One person tilt adjustment
This item is Design Protected

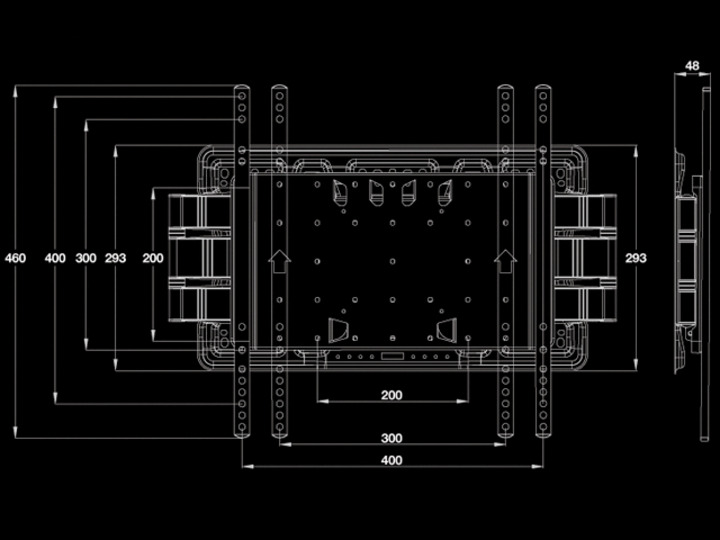

Horizonal distance in mm
Vertical distance in mm
VESA
50
75
100
200
300
400
600
50
75
100
Yes
Yes
200
Yes
Yes
Yes
Yes
300
Yes
Yes
Yes
400
Yes
Yes
Yes
*
600
*
*Optional M Extender Kit Tilt & Turn 600x400







Specification
M VESA Super Slim Tilt & Turn Plus
For screen size:26-55"
Universal & VESA standard:100x100 200x100 200x200 300x300 300x200 400x200 400x400
Article No:7 350 022 734 227
Size in mm:595*294*38-439 (W*H*D)
Distance to wall:VESA 100 / 200 / 300: 39mm
Distance to wall with extender:VESA 400: 49mm
Weight:9,5 kg
Colour:Black
Max load:40 kg
Distribution package:3 pcs
Warranty:5 years
Single box size (WxDxH):687x80x365mm
Units on a EUR-pallet:54 pcs
For VESA 600x400 600x300 600x200:Combine with optional M Extender Kit Tilt & Turn


Suitable for: LCD
Screensize: 26-55"
