M Projectormount Short Throw 950 with Finetune

Multibrackets M Universal Projectormount Short Throw 950 with Finetune Adjustment - Mounting kit ( short throw wall mount ) for projector - steel, aluminum alloy - black, silver

The all new M Universal Projectormount Short Throw 950 is an ideal way to maximize the close-up capabilities of your short throw projector while saving room space and locating the projector above the audience.

The M Universal Projectormount Short Throw 950 includes everything needed for a complete installation including wall plate and hardware for mounting the projector supporting a max load up 12kg´s. The adjustment range allows you to locate the projector and included mount from a minimum of 520 mm from the wall with a +/-10° tilt adjustment.

  • The projector arms mounting pattern is min 30 mm - max 325 mm
  • The Short Throw arm holds the projector min 520 mm and max 950 mm from the wall (centered)

    The included projector mount makes it possible to install almost all Short Throw projectors on the market.. The projector mount is a clean designed compact projectormount with a small form factor which supports the trend towards sophisticated technology in a small package. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.

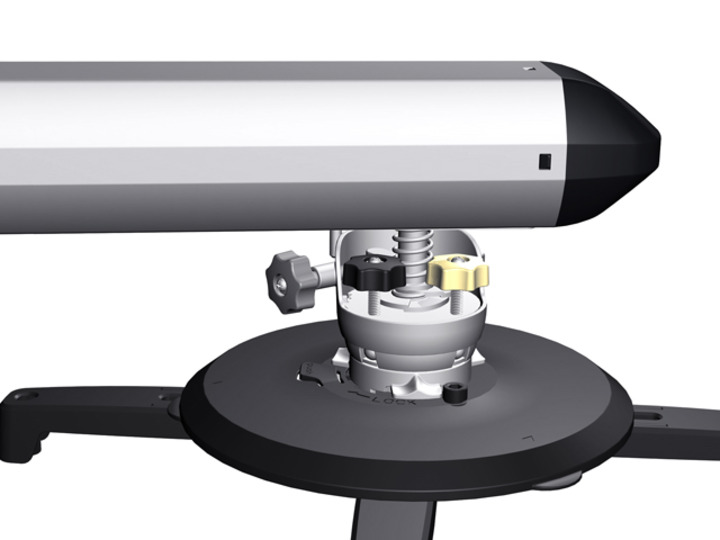

    The built in Finetune Adjustment technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights. Shipped fully assembled, the projectormount is also quick to connect or disconnect for lamp or filter changes via the "easy-lock" release.

  • Fast installation with innovative design
  • Projector position from the wall min 520 mm - max 950 mm (centered)
  • Integrated lateral shift
  • Telescopic slide extension
  • Fine tune adjustment alignment with tilt & turn
  • Integrated cable management system for concealing cables
  • Includes short throw arm and projector mount
  • Includes all hardware for a complete installation for nearly any wall construction
  • "Easy Lock" quick connect / disconnect of the projector for service




Specification
M Universal Projectormount Short Throw 950 with Finetune
Material:Steel / Aluminum alloy
Colour:Silver & Black
Article No:7 350 022 734 258
Weight:4 kg
Rotate:Yes, 360 degrees
Tilt:-10 — +10 degrees

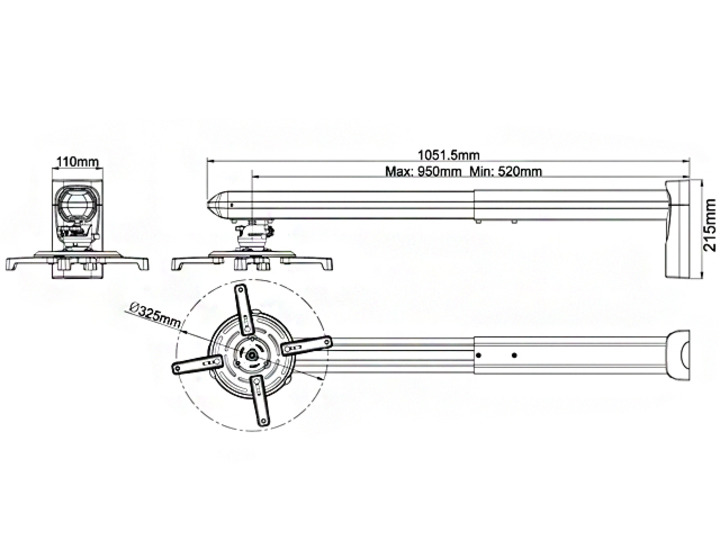

Size (WxHxD):110x215x1051,5 mm
Mounting pattern:Min 30mm — Max 325 mm
Distance to wall:Min 520 mm — Max 950 mm
Warranty:5 years
Max load:15 kg


Suitable for: Projectors
Change mount size:
