M Universal Projectormount Short Throw 1200
with Finetune Adjustment

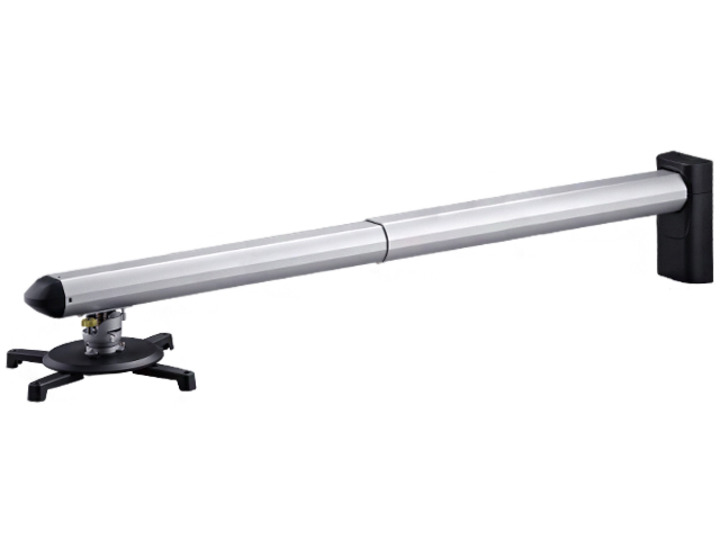

The all new M Universal Projectormount Short Throw 1200 is an ideal way to maximize the close-up capabilities of your short throw projector while saving room space and locating the projector above the audience.

The M Universal Projectormount Short Throw 530 includes everything needed for a complete installation including wall plate and hardware for mounting the projector supporting a max load up 15kg´s. The adjustment range allows you to locate the projector and included mount from a minimum of 670 mm from the wall with a +/-10° tilt adjustment.

  • The projector arms mounting pattern is min 30 mm - max 325 mm
  • The Short Throw arm holds the projector min 670 mm and max 1270 mm from the wall (centered)

    The included projector mount makes it possible to install almost all Short Throw projectors on the market.. The projector mount is a clean designed compact projectormount with a small form factor which supports the trend towards sophisticated technology in a small package. This universal mount is ideal for those who wish to use it with more than one brand or who anticipate changing projectors in the future.

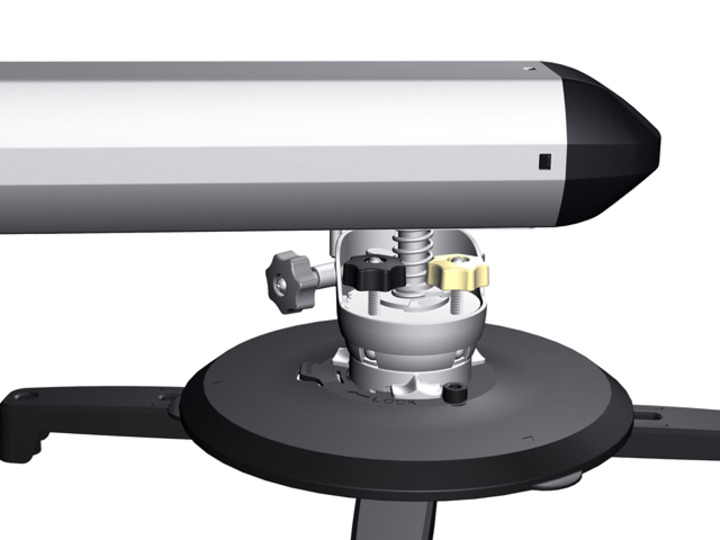

    The built in Finetune Adjustment technology provides fingertip positioning capability which automatically adjusts to accommodate specific projector weights. Shipped fully assembled, the projectormount is also quick to connect or disconnect for lamp or filter changes via the "easy-lock" release.

  • Fast installation with innovative design
  • Projector position from the wall min 670 mm - max 1270 mm (centered)
  • Integrated lateral shift
  • Telescopic slide extension
  • Fine tune adjustment alignment with tilt & turn
  • Integrated cable management system for concealing cables
  • Includes short throw arm and projector mount
  • Includes all hardware for a complete installation for nearly any wall construction
  • "Easy Lock" quick connect / disconnect of the projector for service


    SPECIFICATION
    M Universal Projectormount Short Throw 1200 with Finetune
    Material: Steel / Aluminum alloy
    Colour: Silver & Black
    Article No: 7 350 022 734 265
    Weight: 4,5 kg
    Rotate: Yes, 360 degrees
    Tilt: -10 — +10 degrees

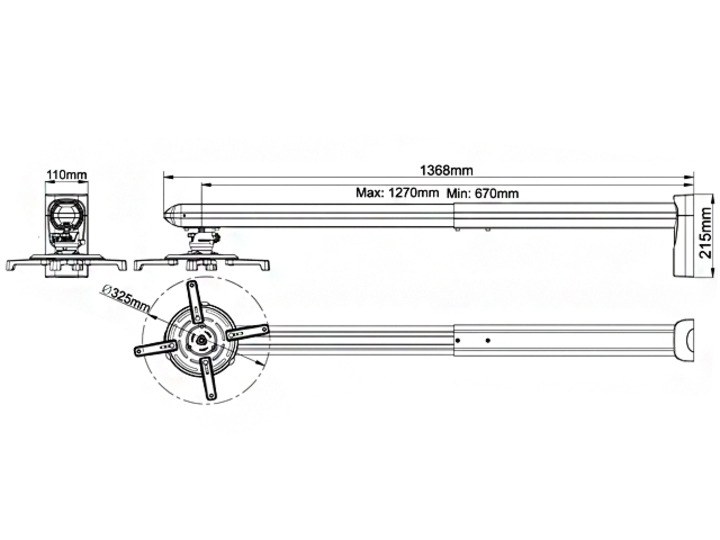

    Size (WxHxD): 110x215x1368 mm
    Mounting pattern: Min 30mm — Max 325 mm
    Distance to wall: Min 670 mm — Max 1270 mm
    Warranty: 5 years
    Max load: 15 kg

  • Quick facts
    Suitable for: Projectors
    Change mount size:

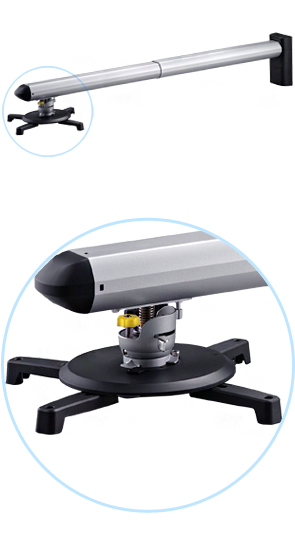

        Click on the thumbnail for a larger image:
