M Public Ceilingmount Large Back to Back 3000

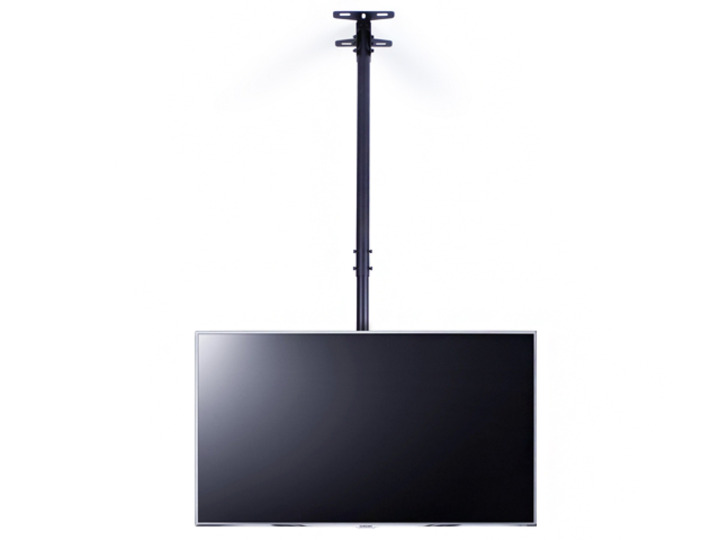

Multibrackets M Public Ceilingmount Large Back to Back - Ceiling mount for 2 LCD displays - steel - black - screen size: 55" - 70"

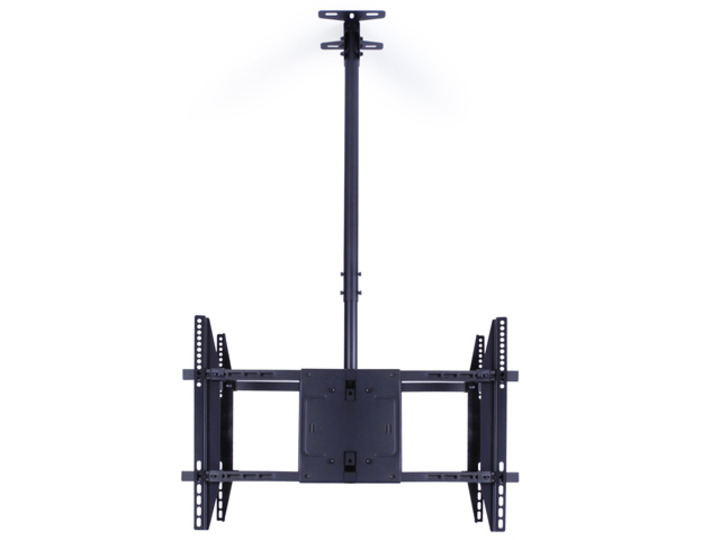

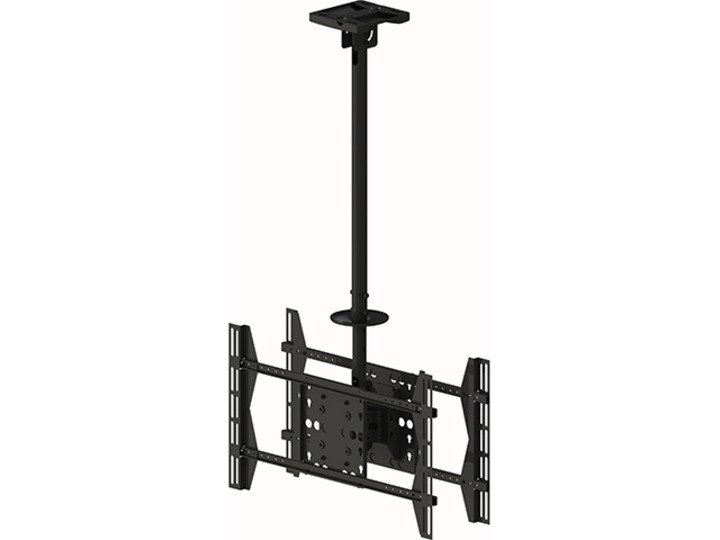

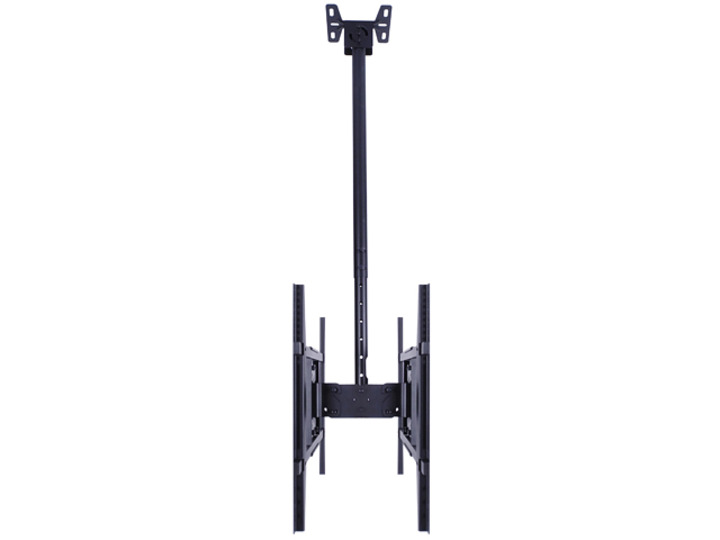

The new M Public Ceilingmount Large Back to Back is a sturdy double flat panel ceiling mount with VESA adapters supporting up to 800x400.

The M Public Ceilingmounts Back to Back feature allows large flat panels or digital signage solutions to be seen from multiple locations. This solution is perfect to use in public installations such as stores, airports, hospitals or elsewhere where safety, stability and perfect viewing angles from multiple positions around the screens are needed.

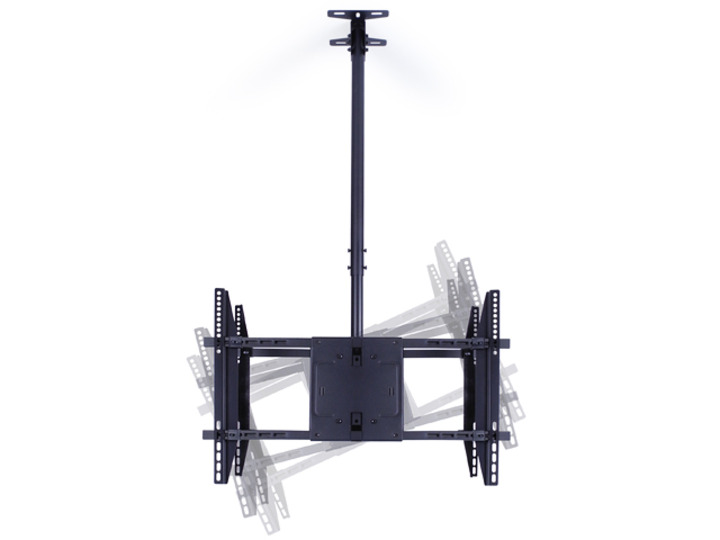

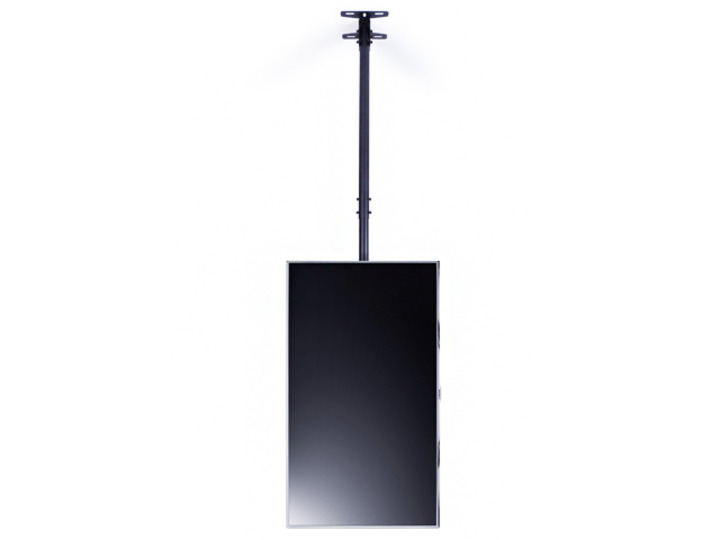

Change the screen from landscape to portrait by turning the screen without demounting it.

blowoutThe new series Ceiling mounts from
Multibrackets where we left no details
out and included all accessories
you might need.


Highlights

  • Portait or landscape position of screen possible by demounting.
  • Includes VESA adapters for compatibility up to VESA 800x400.

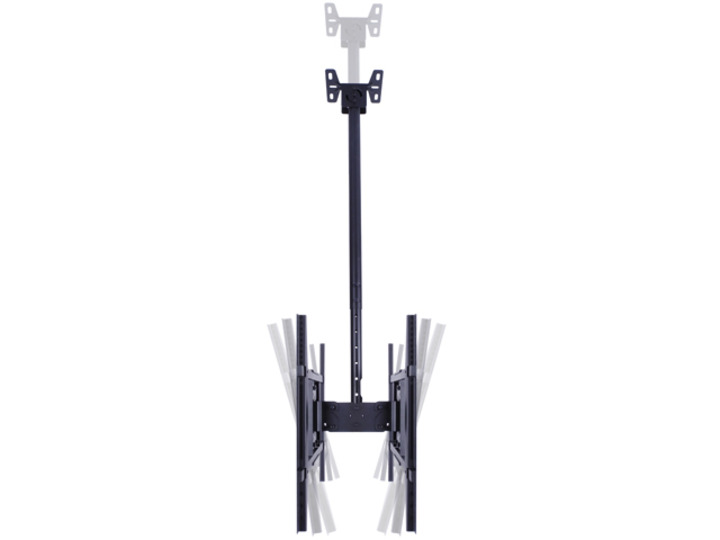

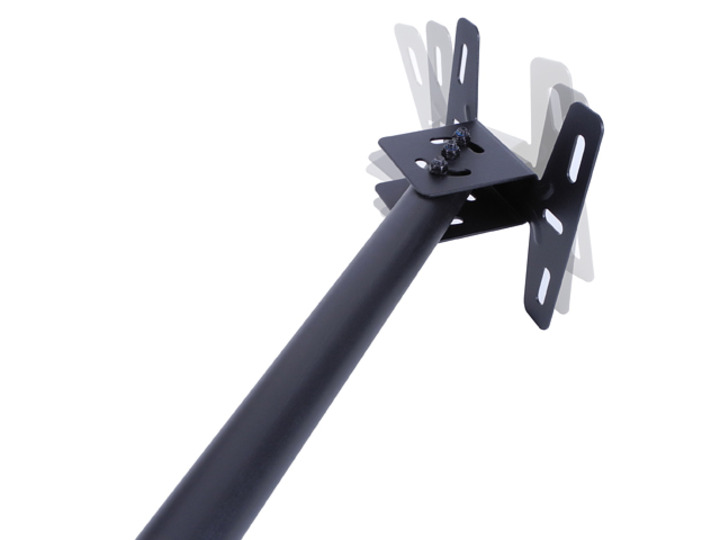

  • Variable tilt with locking pin mechanism for precise positioning.
  • Integrated cable management routes cables through ceiling plate.

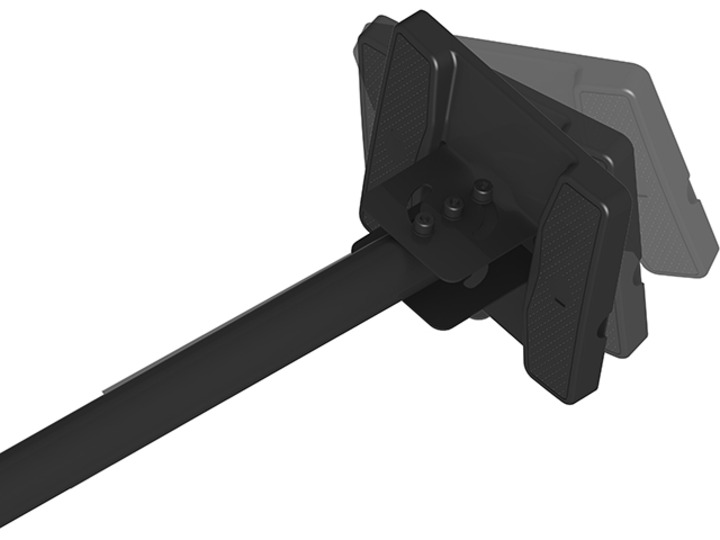

  • Power click install for easy, fast and safe installation.

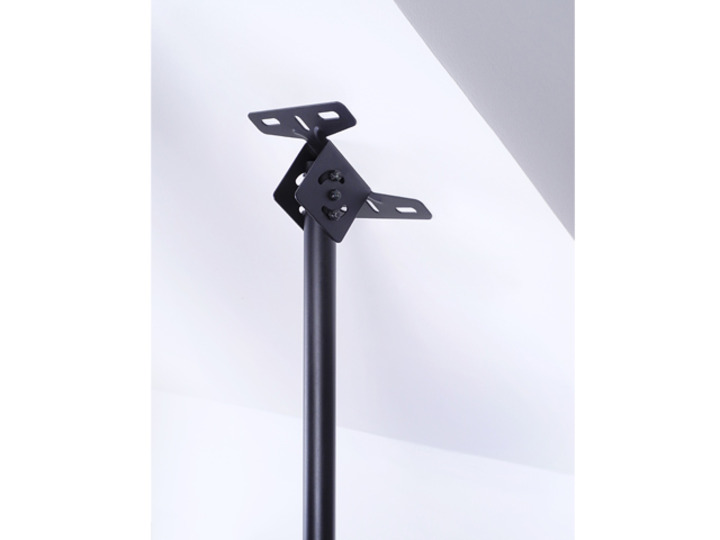

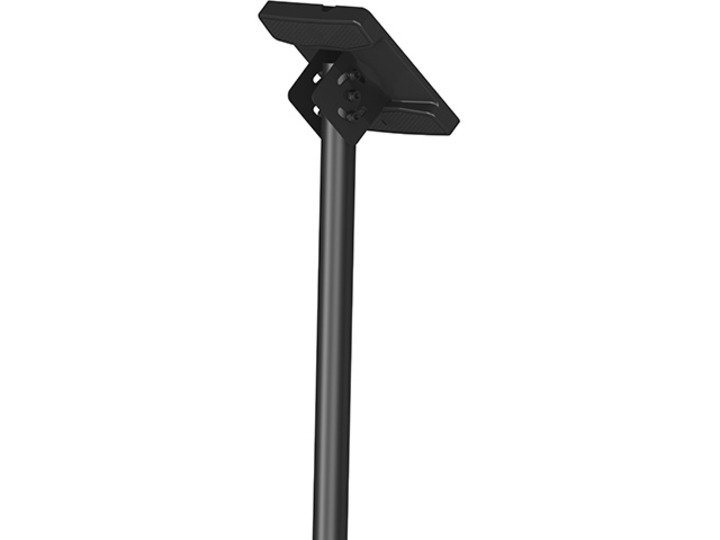

  • Ceiling plate included.
  • Complete hardware kit included.
  • TUV approved.






Specification
M Public Ceilingmount Large Black Back to Back, 3000mm, Black, TUV, Max 800x600
For screen size:55-70"
VESA standard:200x200 300x300 400x200 400x300 400x400 600x400 800x400 mm
Article No:7 350 022 735 491
Pillar length:Min: 860 — Max: 3130 mm
Extension pipes:Optional, max: 3000mm
Weight:12,4 kg
Tilt:-5º—+15º
Colour:Black
Max load:80 kg
Portrait / Landscape mode:Yes
Turn:-30º—+30º
Material:Steel
Warranty:5 years


Suitable for: Public installations
Screensize: 55-70"
